非管理型導軌式工業級百兆以太網交換機MKL108E-I
詳情說明 / Details
低功耗：滿載功耗小于2瓦
寬溫：-40℃ - 85℃
寬電壓：12VDC-36VDC
強散熱：波紋式鋁外殼，IP40防護
產品描述
MKL108E-I是米闊魯推出的綠色工業以太網交換機，提供8個百兆以太網端口，整機滿載功率小于2瓦。可達到EMC工業4級的防護性能，能有效地抵抗靜電、雷擊、脈沖的干擾；IP40等級、低功耗設計、抗震的導軌安裝，能工作于-40℃ - 85℃的惡劣環境；該系列產品特別適用于智能交通、能源、電力、安防等嚴酷工業場合，為其提供快速、可靠的通信連接。
產品特性
標準
IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX
交換特性
MAC Table: 1K
Packet Buffer: 448K
Packet Forwarding Rate: 1.1904Mpps
Switching Delay: <5us
通信接口
RJ45 Ports: 8 10/100Base-Tx RJ45 ports
前面板指示燈
Power LED: PWR
Interface LED: RJ45(Link&ACT) , Fiber(Link&ACT)
電源
Power Terminal: 5-pin 3.81mm-spacing plug-in terminal block
Full load power consumption: <2W
Overload Protection: Support
Reverse Connection Protection: Support Redundancy Protection: Support
物理特性
Housing: Metal, fanless
Protection Class: IP40
Dimensions: 44.5mm x 115mm x 100mm (W×H×D)
Weight: 0.65kg
Mounting: DIN-Rail or Panel mounting
工業標準
EMI:
FCC CFR47 Part 15, EN55022/CISPR22, Class A
EMS:
IEC61000-4-2 (ESD): ±8kV (contact), ±15kV (air)
IEC61000-4-3 (RS): 10V/m (80MHz-2GHz)
IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV
IEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV
IEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz)
IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s)
機械標準
Machinery:
IEC60068-2-6 (Vibration)
IEC60068-2-27 (Shock)
IEC60068-2-32 (Free Fall)
認證
CE, FCC, RoHS
平均無故障時間
360,000 hrs
保修期
5 years
環境條件
Operating Temperature: -40 to 85°C
Storage Temperature: -45 to 85°C
Ambient Relative Humidity: 5 to 95% (non-condensing)

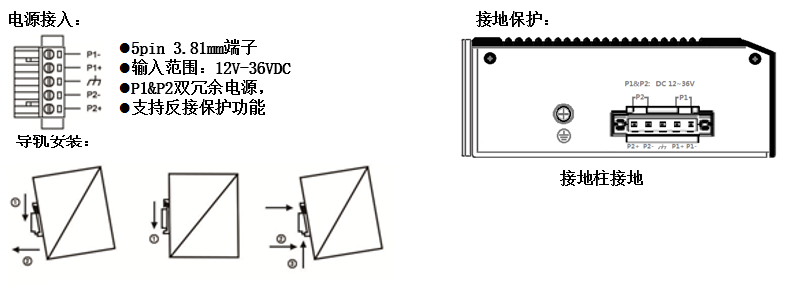

安裝方式

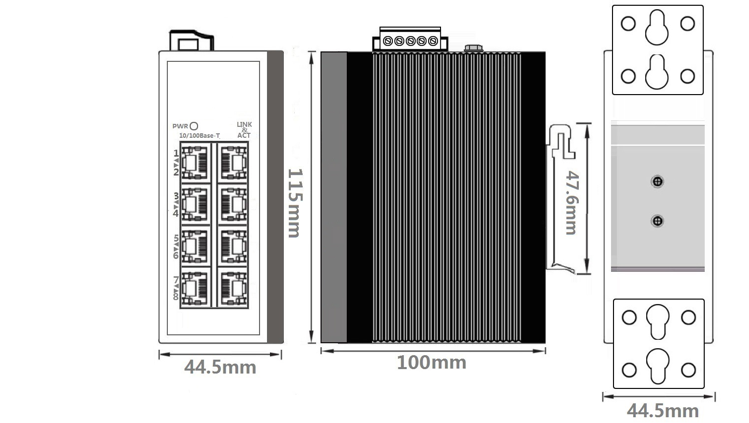

產品尺寸
訂購信息
|
產品型號
|
產品描述
|
|
MKL108E-I
|
8電口百兆非管理工業以太網交換機，導軌安裝；12-36VDC供電
|
